CONTACTOR

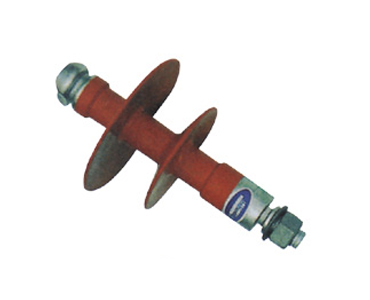

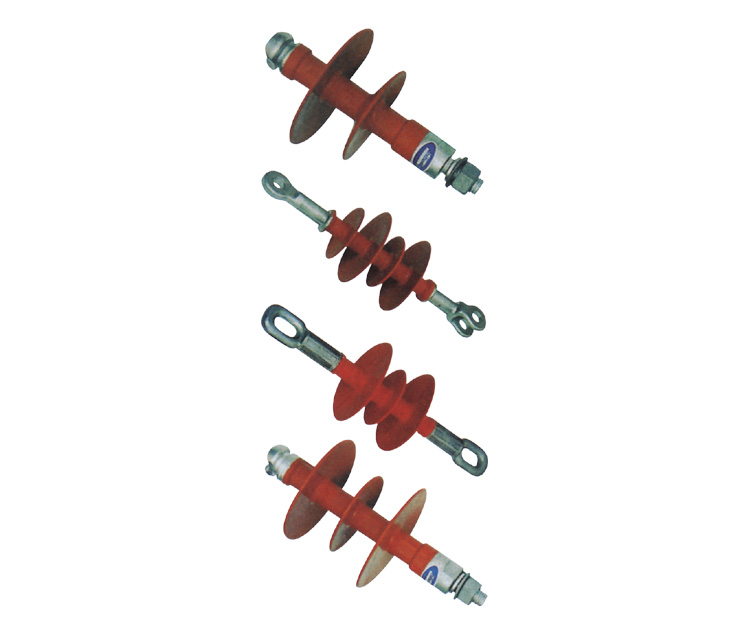

Complex Pin Insulator
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

Type size and mechanical characteristic
NO. type rated bending endurance complex(KN) structure altitude
(mm)		 Insulator max. diameter (mm) Min. electric arc distance (mm) Min.nominal installation electric distance (mm) Lower end screw thread diameter (mm)
1 FP-10/2T16 2 161 146 105 210 16
2 FPQ1-10/4T20 4 183 146 127 300 20
3 FPQ2-10/3T20 3 260 146 184 460 20
Electric performance of insulator
NO. insulator rated
voltage		 equipment tiptop voltage frequency endurance wet voltage
(expiry value)		 thunderbolt full wave strike enduranre voltage (peak)
1 FP-10/2T16 2 12 105 16
2 FPQ1-10/4T20 4 12 127 20
3 FPQ2-10/3T20 3 12 184 20
