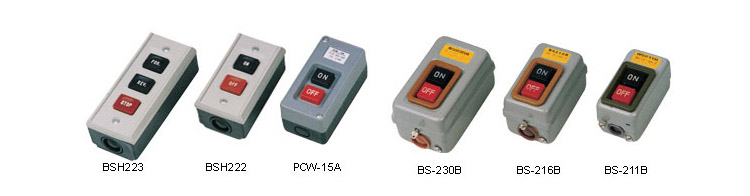

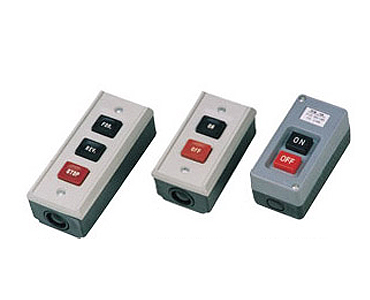

| BS BSH PUSH BUTTON SWITCH |
|
| Application: |
|
| BS power push button switch is applicable to the motor of the voltage up to 500V and the capacity up to 3KW for directly starting run and breaking, also for in frequently turning on and off loaded current. Its characteristic of accurate on-off , safe and reliable ,high intensity of machinery and widely used in machine tools, textile machinery, etc. The switch is the best choice for machinery power. |
|
| Specification: |
|
|
Type |
Rated
current (A) |
Rated
voltage (V) |
L ×B ×H |
|
BSH222 |
1 |
500 |
90 ×50 ×40 |
|
BSH223 |
1 |
500 |
115 ×50 ×40 | |
|
|
Type |
NO.of
phase |
Rated
voltage (V) |
Applicable motor capacity kw(HP) |
Resistance load (A) |
Weight(Kg) |
|
BS-211 |
2.3 |
500 |
220V 0.75(1) |
7.5(10) |
0.13 |
|
BS-216 |
2.3 |
500 |
220V 1.5(3) |
15(20) |
0.18 |
|
BS-230 |
2.3 |
500 |
220V 2.2(3) |
30(35) |
0.23 | | |
|
