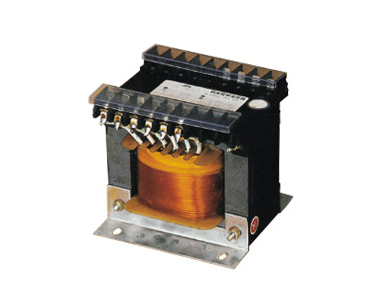

JBK3 machine tool control transformer

Consulting Product Information

Share |

Structure And Use

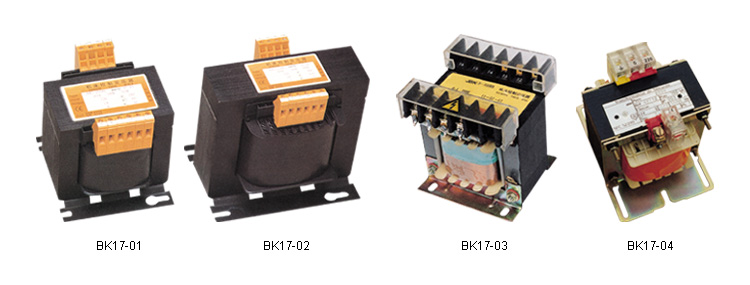

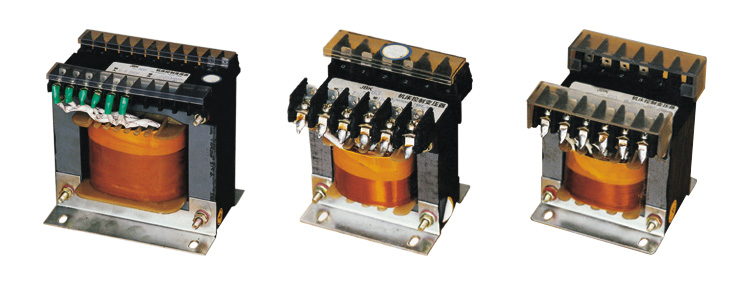

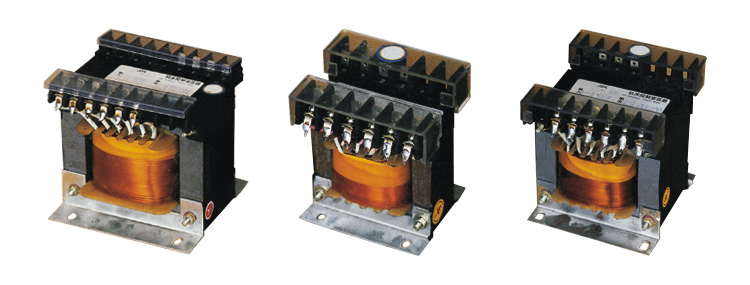

BK17 series machine tools control transformers apply to be used as control power,working light of general electric appliance and mechanical equipment of various trades,and power of signal lamp with AC50-60Hz, input voltage doesn’t exceed 500V, output rated voltage doesn’t exceed 220V.

Technical Data

Type	Rated capacity(VA)	Rated input voltage(V)	Rated output voltage(V)
Type	Rated capacity(VA)	Rated input voltage(V)	Control	illumination	indication
BK17-40~63	40~63	220±5% 380±5%	24 48 110 (127) 220	24 (36)	6 (12)
BK17-100	100
BK17-160	160
BK17-250	250
BK17-400~500	400~500
BK17-630	630
BK17-800	800
BK17-1000	1000		Distribution of capacity for different windings may be made according to the user’s: requirements
BK17-1600	1600
BK17-2500	2500
