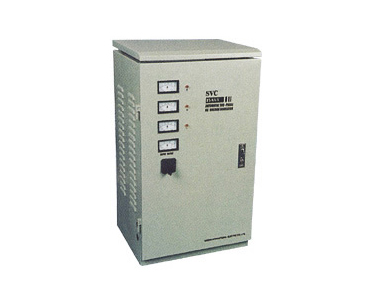

| SVC three phases fully automatic voltage stabilizer |
|
| Applications |
|
|
SVC Three phases automatic voltage stabilizer is the combination of SVC high function single phase automatic voltage stabilizer.The incoming power of the power network is three phases four wires system,the output power is also three phases four wires with three electric meters to indicate three phases separately,and a shift switch & voltage meter to shift and survey each phase. |
|
●Computer
●Test equipment
●Lighting equipment
●Alarm and security system
●X-ray equipment
●Communication systam |
|
●Medical equipment
●Photographic processing equipment
●Numeric control machine tool
●Industrial robot
●Laboratory instrument
●Hi-Fi equipment |
|
|
| Specification |
|
| Input voltage |
Three-phases 280-430V |
| Ouput voltage |
Three-phases 380V±3% |
| Phase |
Three-phases |
| Frequency |
50/60Hz |
| Response time |
Within 1 sec.against 10% input voltage deviation |
| Efficiency |
Better than 90% |
| Ambient temperature |
-5~40℃ |
| Relative humidity |
Less than 95% |
| Waveform distortion |
Non-fidelity in waveform |
| Insulation resistance |
More than 5MΩ |

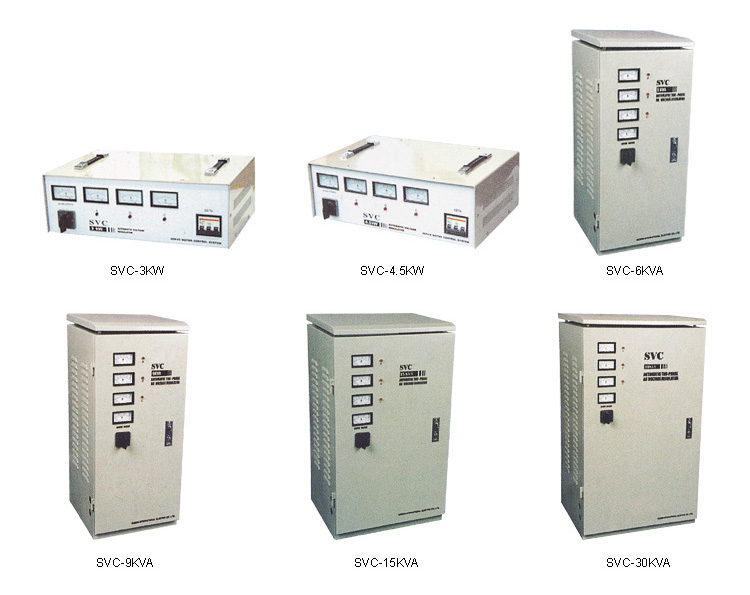

| Model(KVA) |
1.5,3,4,5,6,9,15,20,30,50,60 | | |
|
