Type |

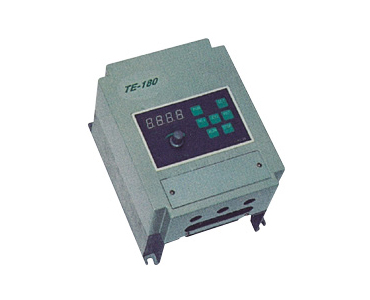

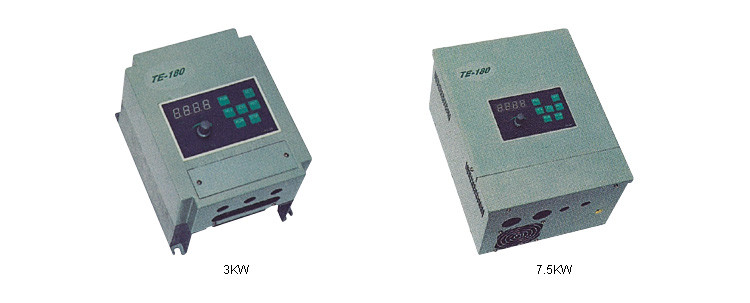

TE |
220V |
2007 |
2015 |
2022 |
2030 |
2040 |
|
|
|
|
|
|
|
|
|
|
|
380V |
3007 |
3015 |
3022 |
3030 |
3040 |
3055 |
3075 |
3110 |
3150 |
3185 |
3220 |
3300 |
3370 |
3450 |
3550 |
|
Output
|
Max.suitable electric machinery |
0.75 |
1.5 |
2.2 |
3.0 |
4.0 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
55 |
|
Rated capacity |
1.6 |
2.6 |
3.7 |
4.7 |
6.5 |
8.6 |
11 |
17 |
22 |
26 |
30 |
40 |
50 |
60 |
75 |
|
Rated current |
220V |
4.3 |
7.0 |
9.5 |
13 |
17 |
|
|
|
|
|
|
|
|
|
|
|
380V |
2.5 |
4.0 |
5.5 |
7.0 |
9.5 |
13 |
17 |
25 |
34 |
40 |
46 |
60 |
76 |
92 |
110 |
|
Max.voltage |
Relatively input voltage |
|
Power |
Input voltage |
Frequenly:2xxx:1phase/3phase 220v 50/60Hz,3xx3 phase 380V 50/60Hz |
|
Permitting alteration range |
Voltage±20% frequency±5% |
|
Control
characteristic
|
Control way |
Voltage vector ontrol way |
|
Output voltage range |
1~120hz |
|
Frequency resolution limiting |
0.1hz |
|
Frequency precision |
±0.3% relatively max.output frequency |
|
V/F Curve |
Any V/F curve setting |
|
Torque advance |
20 class band compensation curve can increase motor output torque when low efficiency |
|
Speed up and down time |
1~120s Speed up and down can independence enactment |
|
Positive and negative change control |
Under stop and running state operation positive and adjust |
|
Spot running |
Efficiency and speed up and down can adjust |
|
Frequency |
150% 60s |
|
Running
characteristic |
Frequency setting |
DC0.5v,0~10v,4~20ma or panel potentiometric implement |
|
Inner connector |
Running,negative,spot running |
|
|
Signal output |
Defective relay connecting spot eutput CAC250V 1A,DC 28V(A) |
|
Vision |
Four digit number tube |
Viaion running frequency value,electric mahinery rotate speed or malfunction |
|
Two signal generator |
Signal running state and direction |
|
Protecting enginery |
Over voltage,lack of voltage,over current,overload,overhot,instantaneous lose electric |
|
Arrow speed preventing,output circuit and high-speed fuse protecting |
|
Entironment
|
Using site |
Indoor without cautery gas,without electric dust,airiness good |
|
Using temperature |
-10℃~+40℃ |
|
Humidity |
Relative humidity under90℃ |
|
Elevation,libration |
Altitude under 1000m,libration under 0.5g |
|
Structure
|
Hang-wall type |
|
Cooling method |
Strong wind |
