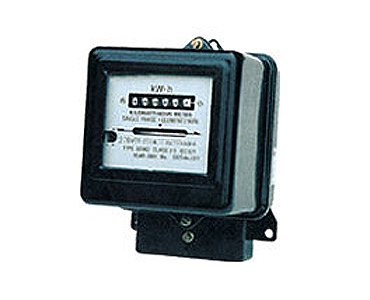

DD862single-phase meter is a induction meter to measure single phase power at rated frequency 50HZ/60HZ,rated power 220/240V. The Ambient temperature is 15~50℃,relative humidity below 85% at 23℃.

semi-enclosed and plug-in voltage core
Double jewel bearing
Cyclometer type register
Bi-direction register

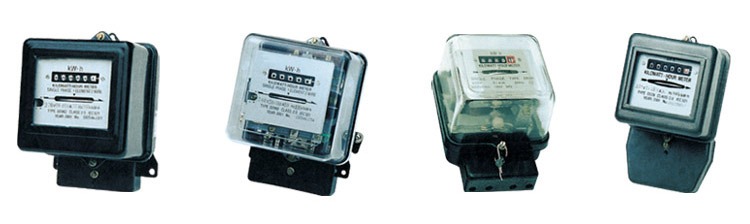

PVC,Polycarbonate,Aluminum alloy cover avaibable
Magnetic bearing available
Technical Specification:Rated Voltage 220V/240V
Accuracy:2.0
Rated Current:1.5(6)A,3(6)a,2.5(10)A,5(20)A,10(40)A,
10(50)A,15(60)A,20(80)A,20(80)A,

Rated Voltage:220V,230V240
Accuracy:2.0
Rated Current::3(6)A,5(10)A,10(20)A,20(40)A30(60)A,
40(80)A,5(20)A,10(40)A,15(60)A,20(80)A,
10(30)A,20(60)A
