CONTACTOR

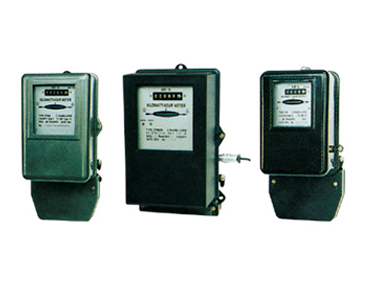

D86 DTM862 D8 Series single phase kilowatt hour meter
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |
Application
Three phase of DT86M series pules watthour meter is similar to it of DT862.But mounted pulse device in DT862 type three phase meter and special output outlet.The meter can identify the direction of dixc rotation,The output may be passive or active in accordance with the users?request.
Technical Data
①The weight of pulse is 100ms±20ms,lower level voltage is valid.
②When the output is active,high level voltage is 12V(load).
③As active output,apply max.current is 100mA.
④As active output,the device understands max.voltage is 50V.
⑤As passive output,permissible max.current is 50mA.
⑥RS485 interface.
Specifications
Type
Accuracy
Rated voltage(V)
Basic current(A)
DT864 Three-phase 4-wire KW.h-meter
1.0
3×220/380 3×230/400
3×240/415
3×1.5(6) 3×3(6)
DT862 Three-phase 4-wire KW.h-meter
2.0
3×220/380 3×230/400
3×240/415
3×1.5(6) 3×3(6)
3×5(20) 3×10(40)
3×15(60) 3×30(100)
DS864 Three-phase 3-wire KW.h-meter
1.0
3×100
3×1.5(6) 3×3(6)
DS862 Three-phase 3-wire KW.h-meter
2.0
3×100
3×1.5(6) 3×3(6)
3×380
3×5(20) 3×10(40) 3×15(60)
DX864 Three-phase 4-wire KVar.h-meter
2.0
3×380
3×1.5(6) 3×3(6)
DX862 Three-phase 4-wire KVar.h-meter
3.0
3×380
3×1.5(6) 3×3(6)
DT863 Three-phase 3-wire KVar.h-meter
2.0
3×100
3×1.5(6) 3×3(6)
3×380
3×1.5(6) 3×3(6)
DX865 Three-phase 3-wire KVar.h-meter
3.0
3×100
3×1.5(6) 3×3(6)
3×1.5(6) 3×3(6)
Main Technical Data
Type
Accuracy
Rated voltage(V)
Basic current(A)
Connection
DT8
Three-phase 4-
wire KW.H-meter
2.0
3×220/380
3×220/380
3×220/380
3x5
C.T
3x10 3x25 3x30
3x40 3x50 3x60
3x80 3x100 3x120
Direct
DS8
Three-phase 3-
wire KW.H-meter
2.0
3×100
3x5
C.T
3×380
3x5
3x10 3x25
Direct
DX8
Three-phase 3-
wire KW.H-meter
3.0
3×100
3x5
C.T
3×380

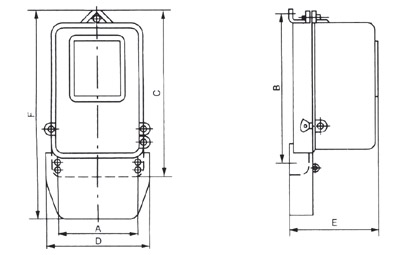

Mount Dimension

Specification(A)
A
B
C
D
E
F
Imax≤40
128
236
253
165
126
320
Imax＞40
132
242
260
162
128
320
