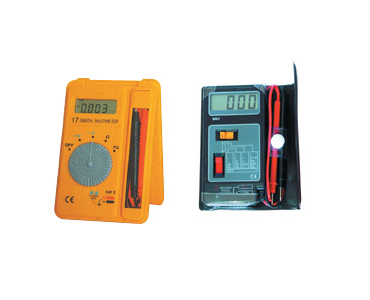

■SUNS17
■3 3/4 digits LCD with a Max. reading of 3999
■Low battery indication
■Overload protection
■Safety 500V CAT Ⅱ
Accessories:
Test lead, battery [AAA R03 SUM-4(1.5V)x2],
instruction manual
|
| Function |
Measuring Range |
Accuracy |
| DCV |
400m-500V |
±(0.8%+2) |
| ACV |
4-500V |
±(1.2%+2) |
| OHM |
400-40MΩ |
±(2.0%+2) |
| FREQ |
99.99Hz~9.999MHz |
±(2.0%+3) |
| Size/weight |
120x79x18mm / 150g |
| | |
|
|
|
■M93A
■3 1/2 digits LCD with a Max. reading of 1999
■Low battery indication
■Overload protection
Accessories:
Test lead, battery [23A(12V)x1], instruction manual
|
| Function |
Measuring Range |
Accuracy |
| DCV |
2-20-200-400V |
±1.0% |
| ACV |
200-400V |
±1.5% |
| DCA |
200mA (only for M93A) |
±1.2% |
| OHM |
2-20K-200K-2MΩ |
±1.0% |
| Diode check |
3.2V/1mA |
|
| Size / weight |
130x74x38mm/170g |
| | |
|
|
|
■MY60
■3 1/2 digits LCD with a Max. reading of 1999
■Engineering unit annunciators
■Low battery indication
■Overload protection
■Audible continuity
Accessories:
Test lead, battery [6F22(9V)x1], instruction manual
|
| Function |
Measuring Range |
Accuracy |
| DCV |
200m-2-20-200-1000V |
±0.5% |
| ACV |
2-20-200-750V |
±1.2% |
| DCA |
20μ-200μ-2m-20m-200m-2A-10A |
±2.0% |
| ACA |
200μ-2m-20m-200m-2-10A |
±2.0% |
| OHM |
200-2K-20K-200K-2M-2MΩ |
±1.0% |
| Diode check |
2.8V/0.8mA |
|
| hFE |
Vce 3V IB 10μA |
|
| Size / weight |
186x88x33mm/295g |
| | |
|
|
|
■DT9208
■3 1/2 digits LCD with a Max. reading of 1999 the LCD can be freely adjusted to 70*MAX.
■Single 32 position easy to use rotary
■Switch for function and range selection
■Auto power off
■Overload protection
■Continuity check with LEDs
Accessories:
Test lead, temp, probe, battery [6F22(9V)x1],
instruction manual |
| Function |
Measuring Range |
Accuracy |
| DCV |
200m-2-20-200-1000V |
±0.5% |
| ACV |
2-20-200-750V |
±1.2% |
| DCA |
20μ-200μ-2m-20m-200m-2A-10A |
±1.2% |
| ACA |
200μ-2m-20m-200m-2-10A |
±1.2% |
| OHM |
200-2K-20K-200K-2M-2MΩ |
±0.8% |
| CAP |
2n-20n-200n-20m-2μ-20μF |
±2.5% |
| Temperature |
-400℃~1000℃ |
±1.5% |
| Logic |
L< 0.7V, H>2.4V |
|
| Diode check |
2.8V/1mA |
|
| hFE |
Vce 3V IB 10μA |
|
| Size / weight |
186×86×33mm/275g |
|
| Battery |
6F22(9V)×1 |
| | |
|
|
|
■EC1000
■4 1/2 digits LCD with a Max. reading of 19999
■Engineering unit annunciators
■Data-hold function
■Low battery indication
■Capacitance measurement
■Frequency measurement
■Auto power off
Accessories:
Test lead, battery [6F22(9V)x1], instruction manual
|
| Function |
Measuring Range |
Accuracy |
| DCV |
200m-2-20-200-1000V |
±0.1% |
| ACV |
2-20-200-700V |
±0.8% |
| DCA |
2m-20m-200m-20A |
±0.75% |
| ACA |
20m-200m-20A |
±1.2% |
| OHM |
200-2K-20K-200K-2M-20M-200MΩ |
±0.5% |
| CAP |
2n-20n-200n-2μ-20μF |
±2.5% |
| FREQ |
10Hz-20KHz |
±1.0% |
| Diode check |
3V/1mA |
|
| hFE |
Vce 3V, Ib 10μA |
|
| Size / weight |
170x88x38mm / 318g |
| | | |
|
