CONTACTOR

General-purpose Relays

Consulting Product Information

Share |

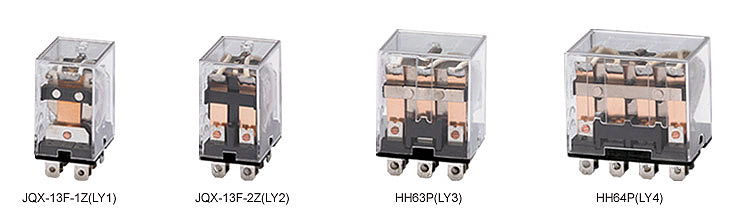

JQX-13F-1Z(LY1)

Size(mm):20.5×27×33.4
Terminal layout:1Z、1H
Contact capacity: 16A 220VAC/
16A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength: BOC 1000VAC/
BCC 1500VAC

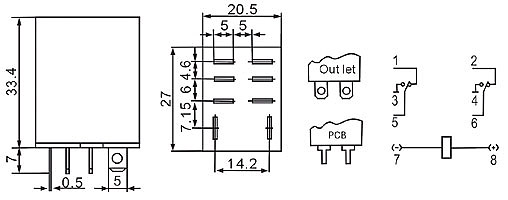

JQX-13F-2Z(LY2)

Size(mm):20.5×27×33.4
Terminal layout:2Z、2H
Contact capacity: 10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength: BOC 1000VAC/
BCC 1500VAC

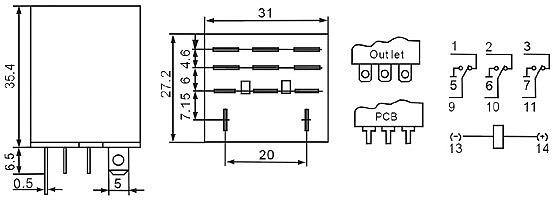

HH63P(LY3)

Size(mm):31×27.2×35.4
Terminal layout:3Z
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

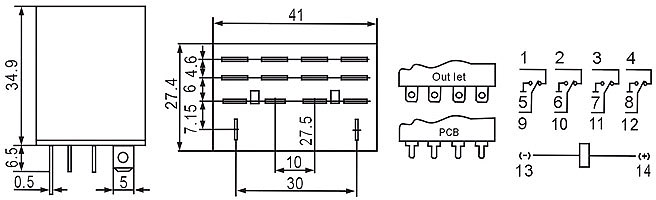

HH64P(LY4)

Size(mm):41×27.4×34.9
Terminal layout:4Z
Contact capacity:10A 220VAC/
10A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥100MΩ
Dielectric strength:BOC 1000VAC/
BCC 1500VAC

Model	Coil nominal voltage	Coil nominal power	Electrical life	Mechanical life	Operating temperature	Weight	Mounting methods
JQX-13F-1Z(LY1)	DC 6 to 220V AC 6 to 380V	DC≤0.9W AC≤1.2VA	105OPS	105OPS	-25℃~55℃	≤32g	Printed-circuit board,Flange, Outlet
JQX-13F-2Z(LY2)	DC 6 to 220V AC 6 to 380V	DC≤0.9W AC≤1.2VA	105OPS	105OPS	-25℃~55℃	≤34g	Printed-circuit board,Flange, Outlet
HH63P(LY3)	DC 6 to 220V AC 6 to 380V	DC≤1.4W AC≤2.0VA	105OPS	105OPS	-25℃~55℃	≤49g	Printed-circuit board,Flange, Outlet
HH64P(LY4)	DC 6 to 220V AC 6 to 380V	DC≤1.5W AC≤2.5VA	105OPS	105OPS	-25℃~55℃	≤69g	Printed-circuit board,Flange, Outlet
