CONTACTOR

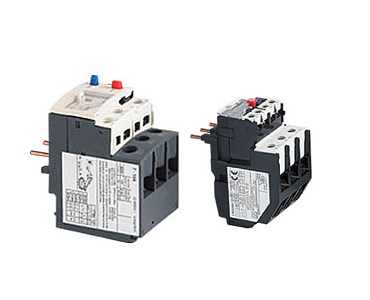

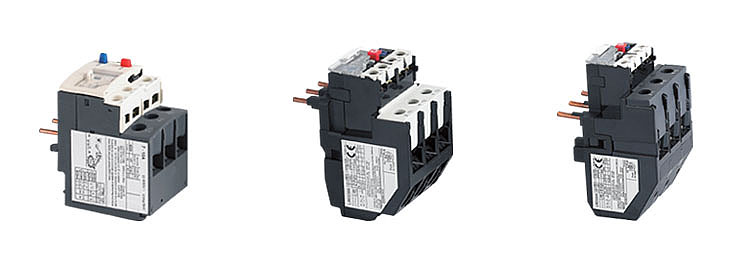

LR-D thermal relay
Print this page
Bookmark this page
PDF View
Tell a friend
Live Messenger
Skype Me
E-mail Us
Consulting Product Information
Share |

Application
LR-D Series new thermal relays are suitable in circuit of AC 50Hz voltage up to 660V and electric power under 45KW for thermal overload protection.It has temperature compensation component. They can be fixed with contactor together,and be independently installed as well.
Technical Specification
aM
gG
BS88
For direct mounting Beneth contactor
reference
A
A
A
A
Rated setting range(A)
0.10...0.16
0.25
2
-
D09...D38
FDR3-01
0.16..,0.25
0.5
2
-
D09...D38
FDR3-02
0.25...0.40
1
2
-
D09...D38
FDR3-03
0.40...0.63
1
2
-
D09...D38
FDR3-04
0.63...1
2
4
-
D09...D38
FDR3-05
1...1.7
2
4
6
D09...D38
FDR3-06
1.6...2.5
4
6
10
D09...D38
FDR3-07
2.5...4
6
10
16
D09...D38
FDR3-08
4...6
8
16
16
D09...D38
FDR3-10
5.5...8
12
20
20
D09...D38
FDR3-12
7...10
12
20
20
D09...D38
FDR3-14
9...13
16
25
25
D12...D38
FDR3-16
12...18
20
35
32
D18...D38
FDR3-21
16...24
25
50
50
D25...D38
FDR3-22
23...32
40
63
63
D25...D38
FDR3-32
30...38
50
80
80
D32yD38
FDR3-35
17...25
25
50
50
D40...D95
FDR3-3322
23...32
40
63
63
D40...D95
FDR3-3353
30...40
40
100
80
D40...D95
FDR3-3355
37...50
63
100
100
D40...D95
FDR3-3357
48...65
63
100
100
D50...D95
FDR3-3359
55...70
80
125
125
D50...D95
FDR3-3361
63...80
80
125
125
D65yD95
FDR3-3363
80...104
100
160
160
D80yD95
FDR3-3365
80...104
125
200
160
D115yD150
FDR3-4365
95...120
125
200
200
D115yD150
FDR3-4367
110...140
160
250
200
D150
FDR3-4369
80...104
100
160
160
(2)
FDR3-33656
95...120
125
200
200
(2)
FDR3-33676
110...140
160
250
200
(2)
FDR3-33696
