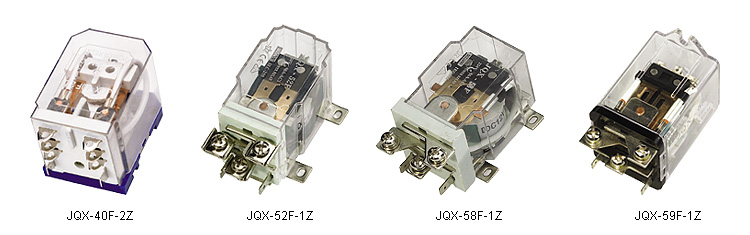

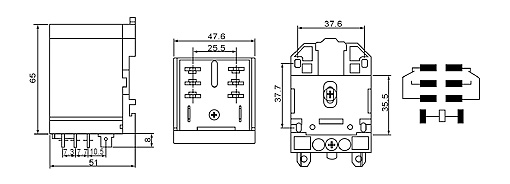

| JQX-40F-2Z |
|
Size(mm):68×48×51
Terminal layout:2Z、2H
Contact capacity: 40A 220VAC/
40A 28VDC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 1500VAC |
 | |
|
| JQX-52F-1Z |
|
Size(mm):59×34.6×46
Terminal layout:1Z、1H
Contact capacity:40A 125VAC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|
| JQX-58F-1Z |
|
Size(mm):65×38.5×46
Terminal layout:1Z、1H、1D
Contact capacity:60A 250VAC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|
| JQX-59F-1Z |
|
Size(mm):46×51×66.3
Terminal layout:1Z、1H、1D
Contact capacity:80A 250VAC
Contact resistance:≤50mΩ
Insulation resistance:≥1000MΩ
Dielectric strength:BOC 1500VAC/
BCC 2500VAC |
 | |
|
| Model |
Coil nominal voltage |
Coil nominal power |
Electrical life |
Mechanical life |
Operating temperature |
Weight |
Mounting methods |
| JQX-40F-2Z |
DC 6 to 220 V
AC 6 to 220V |
DC≤3W
AC≤4.5VA |
105OPS |
106OPS |
-40℃~55℃ |
≤180g |
Outlet, Guide Rail |
| JQX-52F-1Z |
DC 6 to 220 V
AC 6 to 380V |
DC≤2.8W
AC≤4.2VA |
105OPS |
106OPS |
-40℃~55℃ |
≤150g |
Screw Mounting |
| JQX-58F-1Z |
DC 6 to 220 V
AC 6 to 380V |
DC≤3W
AC≤4.5VA |
105OPS |
106OPS |
-40℃~55℃ |
≤191g |
Screw Mounting |
| JQX-59F-1Z |
DC 6 to 220 V
AC 6 to 380V |
DC≤3.5W
AC≤6VA |
105OPS |
106OPS |
-40℃~55℃ |
≤233g |
Screw Mounting | |
